Hi-Force is the UK’s leading designer, manufacturer and supplier of hydraulic tools. Catering to a wide variety of industries, the product range comprises of over 2,000 products including hydraulic cylinders, pumps, jacks, toughlift jacking systems, torque tools, bolt tensioners, hydrotest pumps, puller kits, crimpers and cutters, nut splitters, flange spreaders and other industry related products.
The HVL pancake cylinder range combines a very low closed height with a 0.24 inch stroke, providing a precise adjusting and lifting force in very confined work areas.
The HPS pad cylinder range offers the best capacity, closed height and stroke length combination, spring assisted return cylinders in the industry. Ideally suited for applications where a low closed height and maximum possible stroke is of prime importance.
Low Height Cylinders – HVL, HPS, and HLS
Model Number | Capacity tons | Stroke inch | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs |
HVL Series | |||||
HVL10 | 11 | 0.24 | 0.55 | 2.23 | 3.5 |
HVL20 | 22 | 0.24 | 1.04 | 4.43 | 5.7 |
HVL30 | 35 | 0.24 | 1.65 | 7.07 | 6.6 |
HVL50 | 55 | 0.24 | 2.62 | 11.05 | 15.9 |
HVL100 | 115 | 0.24 | 5.37 | 22.71 | 34.4 |
HPS Series | |||||
HPS50 | 5 | 0.24 | 0.24 | 0.99 | 1.8 |
HPS51 | 5 | 0.63 | 0.61 | 0.99 | 2 |
HPS100 | 11 | 0.39 | 0.85 | 2.23 | 3.5 |
HPS200 | 22 | 0.43 | 1.89 | 4.43 | 5.7 |
HPS300 | 35 | 0.47 | 3.36 | 7.07 | 9.3 |
HPS500 | 55 | 0.59 | 6.53 | 11.05 | 14.6 |
HPS750 | 80 | 0.63 | 10 | 15.92 | 22.9 |
HPS1000 | 120 | 0.63 | 14.95 | 23.78 | 51.1 |
HPS1500 | 162 | 0.63 | 20.13 | 31.96 | 62.8 |
HLS Series | |||||
HLS101 | 11 | 1.58 | 3.54 | 2.23 | 5.3 |
HLS201 | 22 | 1.73 | 7.69 | 4.43 | 10.6 |
HLS301 | 35 | 0.99 | 6.95 | 7.07 | 11 |
HLS302 | 35 | 2.36 | 16.71 | 7.07 | 15.4 |
HLS501 | 55 | 0.99 | 10.86 | 11.05 | 18.5 |
HLS502 | 55 | 2.36 | 26.11 | 11.05 | 22.9 |
HLS1001 | 120 | 0.99 | 23.42 | 23.78 | 43.7 |
HLS1002 | 120 | 2.36 | 56.18 | 23.78 | 52.9 |
HLS1501 | 162 | 0.99 | 31.48 | 31.96 | 81.6 |
HLS1502 | 162 | 1.97 | 62.89 | 31.96 | 92.6 |
The HSS single acting multi-purpose cylinder range offers the widest choice of stroke lengths and lifting capacities available, and provides an excellent choice for maintenance, production, fabrication and construction applications. All models are provided with a collar thread and thread protector, cylinder base and piston rod mountings for easy fixturing, making the HSS range the most versatile and adaptable multi-purpose cylinders available.
– Anti-extrusion seals for improved performance at high pressures
– Nitrocarburized Piston For Excellent Corrosion Resistance
– Working Pressure of 10,000 PSI
– Base Mounting Holes
– Customized and special design cylinders are available on request
– Spring Assisted Return from Quick Retraction
– Aluminum Lightweight Options Available
General Purpose – HSS
Model Number | Capacity tons | Stroke inch | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs |
HSS51 | 5 | 0.99 | 0.98 | 0.99 | 2.2 |
HSS52 | 5 | 1.97 | 1.95 | 0.99 | 2.6 |
HSS53 | 5 | 2.96 | 2.93 | 0.99 | 3.1 |
HSS54 | 5 | 3.94 | 3.9 | 0.99 | 3.3 |
HSS55 | 5 | 4.93 | 4.88 | 0.99 | 4 |
HSS57 | 5 | 6.93 | 6.89 | 0.99 | 4.4 |
HSS59 | 5 | 8.98 | 8.91 | 0.99 | 5.3 |
HSS101 | 11 | 0.99 | 2.2 | 2.23 | 4 |
HSS102 | 11 | 2.21 | 4.94 | 2.23 | 5.3 |
HSS104 | 11 | 3.94 | 8.78 | 2.23 | 6.6 |
HSS106 | 11 | 5.91 | 13.24 | 2.23 | 9.3 |
HSS108 | 11 | 8.12 | 18.12 | 2.23 | 11 |
HSS1010 | 11 | 9.85 | 22.02 | 2.23 | 11.9 |
HSS1012 | 11 | 12.02 | 26.84 | 2.23 | 13.7 |
HSS152 | 16 | 1.97 | 6.16 | 3.15 | 7.5 |
HSS154 | 16 | 3.94 | 12.38 | 3.15 | 11 |
HSS156 | 16 | 5.91 | 18.54 | 3.15 | 14.6 |
HSS1510 | 16 | 9.85 | 30.93 | 3.15 | 19.4 |
HSS252 | 27 | 2.01 | 10.86 | 5.41 | 14.3 |
HSS254 | 27 | 4.02 | 21.72 | 5.41 | 17.6 |
HSS256 | 27 | 5.91 | 31.96 | 5.41 | 21.2 |
HSS258 | 27 | 8 | 43.25 | 5.41 | 21.2 |
HSS2510 | 27 | 9.85 | 53.31 | 5.41 | 27.8 |
HSS2514 | 27 | 14.03 | 75.76 | 5.41 | 37 |
HSS2518 | 27 | 18.01 | 97.42 | 5.41 | 47.2 |
HSS308 | 32 | 8.08 | 52.46 | 6.49 | 41 |
HSS502 | 55 | 2.01 | 22.2 | 11.05 | 28.7 |
HSS504 | 55 | 4.02 | 44.41 | 11.05 | 37 |
HSS506 | 55 | 5.99 | 66.12 | 11.05 | 44.1 |
HSS508 | 55 | 8.08 | 88.33 | 11.05 | 51.1 |
HSS5013 | 55 | 13.01 | 143.59 | 11.05 | 74.1 |
HSS756 | 80 | 5.99 | 95.22 | 15.92 | 68.3 |
HSS1004 | 120 | 4.02 | 95.47 | 23.78 | 91.7 |
HSS1006 | 120 | 6.03 | 143.17 | 23.78 | 109.8 |
HSS10010 | 120 | 10.01 | 237.66 | 23.78 | 144.4 |
The HHS single acting and HHR double acting hollow piston cylinder range are extremely versatile for use in tooling, maintenance and tensioning applications. Specifically designed with a hollow piston to enable a rod or cable to be passed through the entire cylinder length for applications where a pulling force is required, the HHS range is used extensively in post-tensioning and pre-stressing applications as well as testing of various bonded or mechanical anchoring systems. HHS and HHR cylinders can also be used for general lifting applications, when fitted with readily available interchangeable hardened steel piston rod saddles.
– Anti-extrusion seals for improved performance at high pressures
– Nitrocarburized Piston For Excellent Corrosion Resistance
– Working Pressure of 10,000 PSI
– HHS Single Acting and HHR Double Acting
– Customized and special design cylinders are available on request
– HHS Spring Assisted Return from Quick Retraction
– Aluminum Lightweight Options Available
Hollow Through Hole – HHS and HHR
Model Number | Capacity tons | Stroke inch | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs | |
HHS Single Acting Hollow Hole | ||||||
HHS101 | 12 | 0.99 | 2.38 | 2.45 | 6.2 | |
HHS102 | 12 | 1.97 | 4.82 | 2.45 | 6.6 | |
HHS106 | 12 | 5.99 | 14.64 | 2.45 | 22.5 | |
HHS202 | 25 | 1.97 | 10.19 | 5.16 | 15.4 | |
HHS206 | 25 | 5.91 | 30.5 | 5.16 | 30.4 | |
HHS302 | 36 | 1.97 | 14.21 | 7.24 | 23.4 | |
HHS306 | 36 | 5.99 | 43.31 | 7.24 | 42.3 | |
HHS603 | 67 | 2.99 | 39.71 | 13.28 | 61.7 | |
HHS606 | 67 | 5.91 | 78.39 | 13.28 | 89.5 | |
HHS1003 | 112 | 2.99 | 66.37 | 22.18 | 141.1 | |
HHS1006 | 112 | 5.91 | 130.97 | 22.18 | 165.3 | |
HSS108 | 11 | 8.12 | 18.12 | 2.23 | 11 | |
HSS1010 | 11 | 9.85 | 22.02 | 2.23 | 11.9 | |
HSS1012 | 11 | 12.02 | 26.84 | 2.23 | 13.7 | |
HSS152 | 16 | 1.97 | 6.16 | 3.15 | 7.5 | |
HSS154 | 16 | 3.94 | 12.38 | 3.15 | 11 | |
HSS156 | 16 | 5.91 | 18.54 | 3.15 | 14.6 | |
HSS1510 | 16 | 9.85 | 30.93 | 3.15 | 19.4 | |
HSS252 | 27 | 2.01 | 10.86 | 5.41 | 14.3 | |
HSS254 | 27 | 4.02 | 21.72 | 5.41 | 17.6 | |
HSS256 | 27 | 5.91 | 31.96 | 5.41 | 21.2 | |
HSS258 | 27 | 8 | 43.25 | 5.41 | 21.2 | |
HSS2510 | 27 | 9.85 | 53.31 | 5.41 | 27.8 | |
HSS2514 | 27 | 14.03 | 75.76 | 5.41 | 37 | |
HSS2518 | 27 | 18.01 | 97.42 | 5.41 | 47.2 | |
HSS308 | 32 | 8.08 | 52.46 | 6.49 | 41 | |
HSS502 | 55 | 2.01 | 22.2 | 11.05 | 28.7 | |
HSS504 | 55 | 4.02 | 44.41 | 11.05 | 37 | |
HSS506 | 55 | 5.99 | 66.12 | 11.05 | 44.1 | |
HSS508 | 55 | 8.08 | 88.33 | 11.05 | 51.1 | |
HSS5013 | 55 | 13.01 | 143.59 | 11.05 | 74.1 | |
HSS756 | 80 | 5.99 | 95.22 | 15.92 | 68.3 | |
HSS1004 | 120 | 4.02 | 95.47 | 23.78 | 91.7 | |
HSS1006 | 120 | 6.03 | 143.17 | 23.78 | 109.8 | |
HSS10010 | 120 | 10.01 | 237.66 | 23.78 | 144.4 | |
HHR Double Acting Hollow Hole | ||||||
Model Number | Push Tons | Pull Tons | Stroke | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs |
HHR302 | 36 | 26 | 2.01 | 14.52 | 7.24 | 26.9 |
HHR306 | 36 | 26 | 5.91 | 42.76 | 7.24 | 38.8 |
HHR3012 | 36 | 26 | 12.02 | 86.86 | 7.24 | 56.7 |
HHR603 | 67 | 42 | 2.99 | 39.77 | 13.28 | 67.5 |
HHR606 | 67 | 42 | 5.99 | 79.54 | 13.28 | 91.7 |
HHR6010 | 67 | 42 | 10.01 | 132.92 | 13.28 | 112.7 |
HHR1003 | 112 | 47 | 2.99 | 66.31 | 22.18 | 151 |
HHR1006 | 112 | 47 | 5.99 | 132.61 | 22.18 | 198.4 |
HHR1508 | 167 | 78 | 8 | 263.52 | 32.98 | 374.8 |
HHR2508 | 272 | 84 | 8 | 429.38 | 53.71 | 593 |
HAS, HHA, HFA, and HRA lightweight, aluminum cylinders is specifically designed for applications where weight and ease of positioning are features of prime importance. With an average weight of approximately 50% of comparable capacity steel construction cylinders, all models are supplied with a hard anodized, wear resistant, piston rod and cylinder body and a steel cylinder base protection plate.
– Anti-extrusion seals for improved performance at high pressures
– Hard Anodized Piston Rod and Cylinder
– Working Pressure of 10,000 PSI
– HAS Single Acting (Steel Options Available)
– HHA Hollow Hole (Steel Options Available)
– HFA Locking Collar (Steel Options Available)
– HRA Double Acting (Steel Options Available)
– Customized and special design cylinders are available on request
– HAS and HHA Spring Assisted Return from Quick Retraction
– Steel Base Plate to Protect Cylinder Body
– Aluminum Pumps Available
Model Number | Capacity tons | Stroke inch | Oil cap. in3 | Cyl. eff. area in2 | Weight lbs |
HAS Single Acting | |||||
HAS302 | 35 | 2.01 | 13.73 | 6.85 | 8.8 |
HAS306 | 35 | 5.99 | 40.99 | 6.85 | 13.2 |
HAS3012 | 35 | 12.02 | 82.23 | 6.85 | 17.6 |
HAS502 | 56 | 2.01 | 69.3 | 10.99 | 17.6 |
HAS506 | 56 | 5.99 | 65.7 | 10.99 | 24.3 |
HAS5012 | 56 | 12.02 | 414.31 | 10.99 | 35.3 |
HAS1002 | 121 | 2.01 | 47.89 | 23.85 | 41.9 |
HAS1006 | 121 | 5.99 | 142.74 | 23.85 | 50.7 |
HAS1012 | 121 | 12.02 | 286.4 | 23.85 | 75 |
HHA Single Acting Hollow Hole | |||||
HHA182 | 20 | 2.01 | 7.87 | 3.91 | 7.9 |
HHA372 | 41 | 2.01 | 16.23 | 8.08 | 15.9 |
HHA504 | 57 | 4.14 | 46.67 | 11.28 | 29.5 |
HFA Locking Collar | |||||
HFA302 | 35 | 2.01 | 14.15 | 7.04 | 13.2 |
HFA306 | 35 | 5.99 | 42.15 | 7.04 | 17.6 |
HFA3012 | 35 | 12.02 | 84.55 | 7.04 | 24.3 |
HFA502 | 56 | 2.01 | 22.2 | 11.05 | 19.8 |
HFA506 | 56 | 5.99 | 66.12 | 11.05 | 24.3 |
HFA5012 | 56 | 12.02 | 132.68 | 11.05 | 37.5 |
HFA1002 | 121 | 2.01 | 47.89 | 23.85 | 52.9 |
HFA1006 | 121 | 5.99 | 142.74 | 23.85 | 66.1 |
HFA10012 | 121 | 12.02 | 286.4 | 23.85 | 86 |
HRA Double Acting | |||||
HRA302 | 35 | 2.01 | 13.74 | 6.85 | 11 |
HRA306 | 35 | 5.99 | 40.96 | 6.85 | 15.4 |
HRA3012 | 35 | 12.02 | 82.2 | 6.85 | 22 |
HRA502 | 56 | 2.01 | 22.05 | 10.99 | 22 |
HRA506 | 56 | 5.99 | 65.72 | 10.99 | 28.7 |
HRA5012 | 56 | 12.02 | 131.88 | 10.99 | 41.9 |
HRA1002 | 121 | 2.01 | 47.89 | 23.85 | 48.5 |
HRA1006 | 121 | 5.99 | 142.73 | 23.85 | 63.9 |
HRA10012 | 121 | 12.02 | 286.4 | 23.85 | 86 |
The HFG and HFL single acting failsafe lock ring cylinder ranges combines all the versatility and efficiency of hydraulic power with the safety of mechanical load support. Ideally suited for applications requiring sustained load holding for extended periods, such as bridge support work, the HFG and HFL ranges features a single acting, load return piston, threaded throughout its stroke length to suit the threaded mechanical load holding lock ring. Simply jack up the load, wind down the mechanical lock ring until it comes into contact with the cylinder body, release the hydraulic pressure and sustain the load mechanically. All models are suitable for vertical lifting only and are supplied with tilting saddles as standard to reduce the risk of side loading the cylinder.
– Anti-extrusion seals for improved performance at high pressures
– Mechanical Locking Ring Allows Full Load Support after Removing All Hydraulic Pressure
– Load Return
– Working Pressure of 10,000 PSI
– HFL Low Height Models
– HFG Standard Height Models
– Customized and special design cylinders are available on request
– Nitrocarburized Piston For Excellent Corrosion Resistance
– Overstroke Restrictor Port to Over Extension of Cylinder
– Aluminum Lightweight Options Available
Locking Collar – HFG and HFL
Model Number | Capacity tons | Stroke inch | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs |
HFL Low Height Locking Collar | |||||
HFL502 | 55 | 2.01 | 21.96 | 11.05 | 31.3 |
HFL1002 | 120 | 1.97 | 46.99 | 23.78 | 55.3 |
HFL1502 | 167 | 1.77 | 65.29 | 33.22 | 97 |
HFL2002 | 224 | 1.77 | 86.65 | 44.19 | 125.2 |
HFL2502 | 287 | 1.77 | 100.69 | 56.75 | 153 |
HFL4002 | 439 | 1.77 | 153.18 | 86.65 | 266.8 |
HFL5002 | 573 | 1.77 | 200.77 | 113.13 | 410.1 |
HFG Standard Height Locking Collar | |||||
HFG502 | 55 | 2.01 | 21.97 | 11.05 | 35.7 |
HFG504 | 55 | 4.02 | 44.55 | 11.05 | 45.4 |
HFG506 | 55 | 5.91 | 65.3 | 11.05 | 55.1 |
HFG1002 | 120 | 2.01 | 46.38 | 23.78 | 77.2 |
HFG1004 | 120 | 3.94 | 93.37 | 23.78 | 104.7 |
HFG1006 | 120 | 5.91 | 140.35 | 23.78 | 135.6 |
HFG1502 | 167 | 2.01 | 65.3 | 33.22 | 172 |
HFG1504 | 167 | 3.94 | 130.6 | 33.22 | 185.2 |
HFG1506 | 167 | 5.91 | 195.87 | 33.22 | 197.3 |
HFG2002 | 224 | 1.97 | 86.65 | 44.19 | 210.3 |
HFG2006 | 224 | 5.99 | 264.23 | 44.19 | 302 |
HFG2506 | 282 | 5.99 | 335.65 | 56.81 | 377 |
HFG3006 | 359 | 5.91 | 419.26 | 70.94 | 503.8 |
HFG4006 | 439 | 5.95 | 515.07 | 86.65 | 680.1 |
HFG5006 | 573 | 5.99 | 677.36 | 113.13 | 1007.5 |
HFG8006 | 892 | 5.99 | 1066.15 | 175.79 | 1620.4 |
HFG10006 | 1115 | 5.99 | 1318.8 | 220 | 2239.9 |
The HP manually operated aluminum and steel pump range offers two speed operation and all models are supplied complete with a pre-filled oil reservoir, ready for immediate use. All models have a maximum working pressure of 10000 PSI and the range includes pump models suitable for use with either single or double acting cylinders and tools.

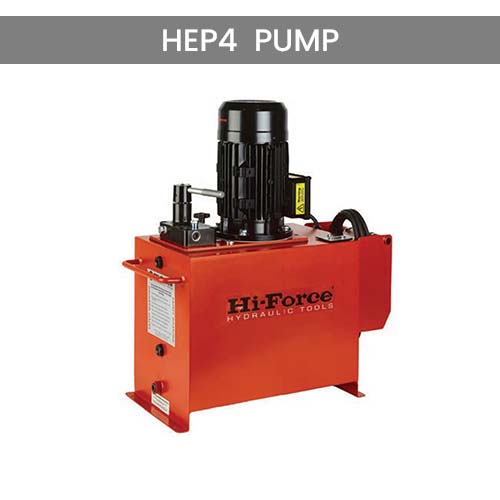

The HEP electric pump ranges offer single and double acting multi-stage pumps that support 120, 220, 380, and 440 volt applications. The HEP ranges splits into multiple subranges to accommodate specific customer needs – such as the HEP103 range for compact size and smaller cylinder use cases. The HEP2 general duty medium flow pumps for larger and even double acting cylinders – or the HEP3 and HEP5 pumps for general and heavy duty high flow applications. There are more options than could be listed here so reference page 27 in the catalog for more pump information. ***link to Catalog PDF***
Special applications may make use of the HSP split flow pump for individual or synchronous cylinder control on up to 8 cylinders – or the SLF Synchronous Lifting System for applications that need extremely precise and computer controlled lift and lowering applications.

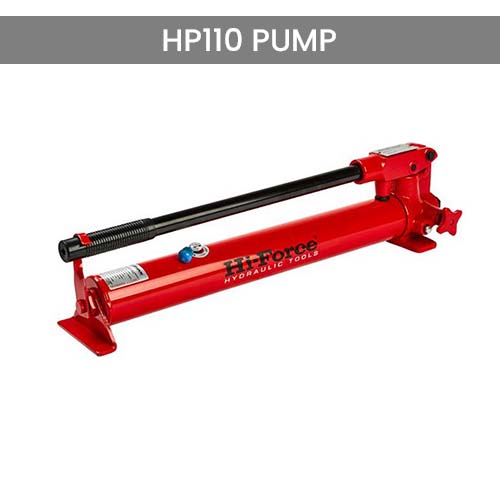

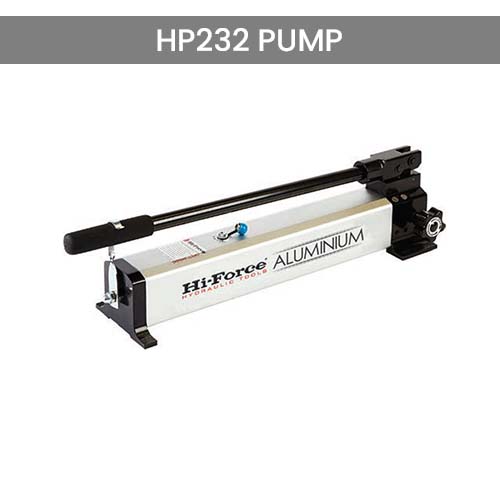

– Aluminum Lightweight Single and Double Acting Hand Pumps
– Steel Single and Double Acting Hand Pumps

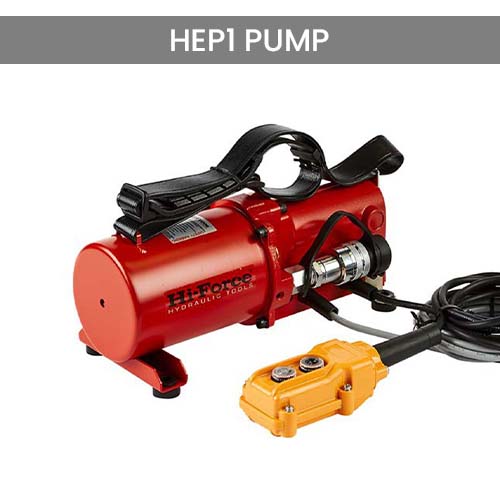

– HEP1 Lightweight Mini Electric Pump

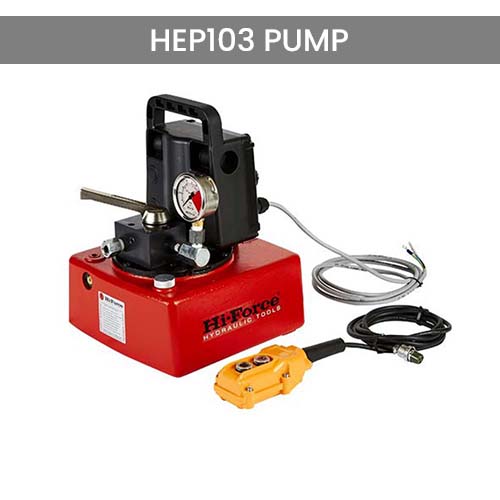

– HEP103 Compact Electric Pump Series
– HEP2 General Duty Medium Flow Single an Double Acting

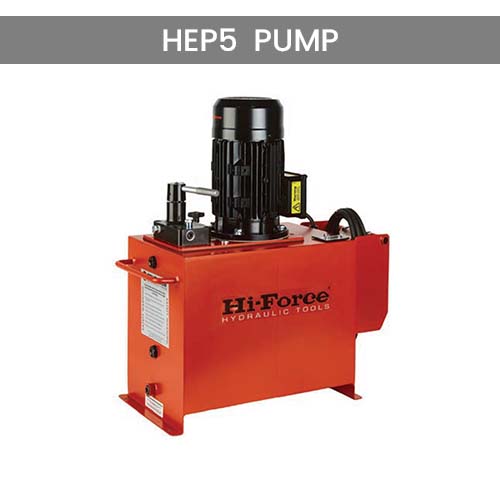

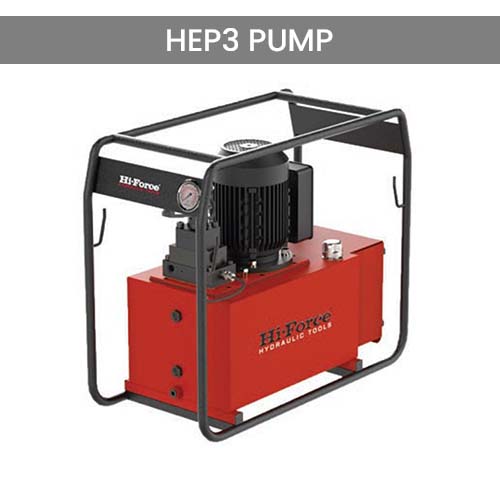

– HEP3 and HEP5 General and Heavy Duty High Flow Single and Double Acting

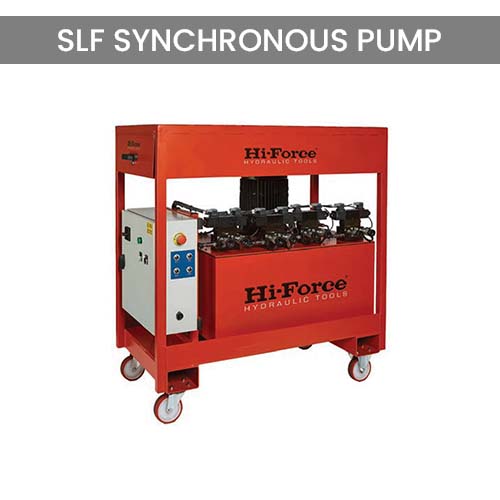

– Synchronous Lifting and Splitflow HSP and SLF Pumps
For more information regarding Hi-Force’s wide variety of pump offerings – check out page 27 of the catalog. **link to the Catalog PDF**
The HDA double acting cylinder range offers the utmost in versatility and durability. Specifically designed for heavy duty lifting, construction and maintenance applications as well as presswork and industrial production, the double acting design provides substantial pulling force in the piston retraction mode as well as providing fast, controlled retraction for continuous duty cycle operation.
The HGG range of load return industrial cylinders is specifically designed for lifting and maintenance applications. These single acting cylinders are supplied with a tilting saddle to reduce risks of damage caused by side loading and an integral stop ring for stroke limitation is fitted as standard.
The HSG single acting load return construction cylinders are ideally suited for construction, civil engineering, heavy fabrication and maintenance applications. These cylinders are supplied with a tilting saddle fitted as standard and have a stroke limitation device incorporated for safety.
– Extremely High Tonnage Cylinders
– Anti-extrusion seals for improved performance at high pressures
– Nitrocarburized Piston For Excellent Corrosion Resistance
– Working Pressure of 10,000 PSI
– Anti-Extrusion Seals for Improved Performance at High Pressures
– HGG and HSG Single Acting Cylinders
– HDA Double Acting Cylinders
Model Number | Push Tons | Pull Tons | Stroke in. | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs. |
HDA Double Acting | ||||||
HDA256 | 27 | 11 | 5.99 | 32.34 | 5.41 | 33.1 |
HDA506 | 55 | 16 | 5.99 | 65.91 | 11.05 | 62.6 |
HDA5013 | 55 | 16 | 13 | 143.41 | 11.05 | 93.9 |
HDA5020 | 55 | 16 | 20.02 | 220.91 | 11.05 | 138.4 |
HDA1006 | 120 | 40 | 5.99 | 142.18 | 23.76 | 142.2 |
HDA10013 | 120 | 40 | 13 | 308.78 | 23.76 | 196.2 |
HDA1506 | 167 | 87 | 5.99 | 198.94 | 33.2 | 198.4 |
HDA15012 | 167 | 87 | 12.02 | 398.48 | 33.2 | 265.7 |
HDA2006 | 224 | 104 | 5.99 | 364.23 | 44.21 | 286.2 |
HDA20012 | 224 | 104 | 12.02 | 530.3 | 44.21 | 369.1 |
HDA3006 | 359 | – | 5.99 | 424.11 | 70.9 | 425.5 |
HDA30012 | 359 | – | 12.02 | 851.28 | 70.9 | 551.2 |
HDA4006 | 439 | – | 5.99 | 518.09 | 86.63 | 630.5 |
HDA40012 | 439 | – | 12.02 | 1039.84 | 86.63 | 853.2 |
HDA5006 | 573 | – | 5.99 | 676.75 | 113.13 | 820.1 |
HDA50012 | 573 | – | 12.02 | 1358.39 | 113.13 | 1042.8 |
HDA8006 | 892 | – | 5.99 | 1054.49 | 175.79 | 1433 |
HDA10006 | 1115 | – | 5.99 | 1319.33 | 220 | 1984.1 |
Model Number | Capacity tons | Stroke inch | Oil cap. inch3 | Cyl. eff. area inch2 | Weight lbs | |
HGG Single Acting Load Return | ||||||
HGG1506 | 168 | 6.11 | 202.59 | 33.22 | 128.5 | |
HGG2006 | 224 | 6.11 | 282.54 | 44.19 | 210.1 | |
HGG3006 | 359 | 6.11 | 433.27 | 70.94 | 338.4 | |
HSG Single Acting Load Return | ||||||
HSG1506 | 168 | 5.99 | 195.88 | 33.22 | 170.9 | |
HSG2006 | 224 | 5.99 | 264.84 | 44.19 | 237.4 | |
HSG3006 | 359 | 5.99 | 426.56 | 70.94 | 386.2 |
Hi-Force carries a very versatile set of tensioners. The STS imperial bolt tensioner range is designed for topside operation in a wide variety of applications including pipeline flanges, heat exchangers, pressure vessels, compressor covers, boiler feed pumps, anchor bolts and many others. The SBT imperial range of hydraulic bolt tensioners, offers all of the features and benefits of our standard STS range, but with the added feature of spring assisted return hydraulic pistons. Hi-Force STU series sub-sea bolt tensioners are designed and manufactured to suit the demanding requirements of divers operating in harsh sub-sea environments.
The Hi-Force HTN range of imperial top collar hydraulic nuts is specifically designed and manufactured for applications where regular, periodic opening of the joint, for inspection and maintenance purposes is required. Unlike conventional hydraulic bolt tensioners, Hi-Force HTN series hydraulic nuts are designed to permanently replace standard hexagon nuts, on one side of the bolted joint. Initially the bolt tension or elongation is applied hydraulically and once achieved, it is permanently retained via the integral mechanical load retaining collar.
– Customized and special design tensioners are available on request
– Available in Imperial and Metric
– Visible maximum piston stroke indicator
– Nitrocarburized Piston For Excellent Corrosion Resistance
– Working Pressure of 21,750 PSI
– Dual quick connect couplings for easy connection
– STS and SBT Hydraulic Tensioners
– STU Subsea Tensioners
– HTN Hydraulic Nut Leave-On Tensioners
– Manual HPX-BTU Tensioner Hand Pumps
– Pneumatic AHP-BTU Tensioner Pumps
Tensioners, Hydraulic Nuts, and Pumps – STS, SBT, STU, HTN, HPX and AHP
Model | Bolt Diameter | Pressure PSI | Tons | Imperial and Metric? |
Tensioners | ||||
SBT Spring Return Series | 1 ¼” to 4″ | 21750 | 51.4 to 297.6 | Yes |
STS Manual Return Series | ¾” to 4″ | 21750 | 26.3 to 297.6 | Yes |
STU Subsea Series | 1″ to 3½” | 21750 | 28.8 to 279 | Yes |
Hydraulic Nut Leave-On Tensioners | ||||
HTN Series | 1″ to 4″ | 21750 | 22.3 to 214.8 | Yes |
See more info on Catalog Page 103 |
The Hi-Force ToughLift jacking system offers users the easiest and safest method of lifting material haulers in the mining and construction industry and locomotives in the railway industry, when critical maintenance and breakdown repair work is required. Suitable for lifting even the largest earth haulers in the world, the Hi-Force ToughLift is available in 55, 110, 165 and 220 ton lifting capacities.
– Choice of air or electric driven hydraulic system
– High speed 3-stage pump unit offers faster advance and retract times, both under load and no load
– Integral airline filter, lubricator and pressure regulator unit on air driven models.
– Solid tires fitted as standard with option of pneumatic tires
– Working Pressure of 10,000 PSI
– Lifting heights up to 27 inches
– Narrow width wheels and redesigned wheel position for better ground clearance and balance when manoeuvring
– Push button remote hand pendant controller with 16.5 foot control cable
– Tilting saddles fitted as standard on all models
– Wide range of accessories available for even greater versatility
Model Number | Capacity tons | Power Supply | Stroke inch | Weight lbs | Max Additional Stack inch |
TLA5010 | 55 | 90 psi air driven | 10.01 | 352.7 | 26.79 |
TLA5014 | 55 | 90 psi air driven | 13.99 | 374.8 | 26.79 |
TLE5010-110V | 55 | 110V electric, 50 Hz | 10.01 | 370.4 | 26.79 |
TLE5010-120V | 55 | 120V electric, 60 Hz | 10.01 | 370.4 | 26.79 |
TLE5010 | 55 | 230V electric, 50 Hz | 10.01 | 370.4 | 26.79 |
TLE5010H | 55 | 220V electric, 60 Hz | 10.01 | 370.4 | 26.79 |
TLE5014-110V | 55 | 110V electric, 50 Hz | 13.99 | 374.8 | 26.79 |
TLE5014-120V | 55 | 120V electric, 60 Hz | 13.99 | 374.8 | 26.79 |
TLE5014 | 55 | 230V electric, 50 Hz | 13.99 | 374.8 | 26.79 |
TLE5014H | 55 | 220V electric, 60 Hz | 13.99 | 374.8 | 26.79 |
TLA10016 | 110 | 90 psi air driven | 15.96 | 637.1 | 18.91 |
TLA10021 | 110 | 90 psi air driven | 20.88 | 703.3 | 7.09 |
TLA15015 | 165 | 90 psi air driven | 15.37 | 690 | 19.11 |
TLA15020 | 165 | 90 psi air driven | 20.49 | 769.4 | 7.09 |
TLA20015 | 220 | 90 psi air driven | 15.01 | 822.3 | 19.7 |
TLA20027 | 220 | 90 psi air driven | 27 | 998.7 | 7.09 |
– Toe Jacks
– Pullers
– Nut-Splitters
– Pneumatic Foot Pumps
– Spreaders
– Bottle Jacks
– Gauges, Hoses, Fittings, Manifolds, and Other Accessories
– Press Units
– Find Dimensions and Extra Specifications
– Accessories of all Kinds and more!
Check out the catalog below or call with any questions!
***link to Catalog PDF***
– Toe Jacks
– Pullers
– Nut-Splitters
– Pneumatic Foot Pumps
– Spreaders
– Bottle Jacks
– Gauges, Hoses, Fittings, Manifolds, and Other Accessories
– Press Units
– Find Dimensions and Extra Specifications
– Accessories of all Kinds and more!
Check out the catalog below or call with any questions!
link to Catalog PDF
Click here to call and check availability and set it up!!
Call NowClick here to call and check availability and set it up!!
Call Now
