– Very wide range of closed heights and strokes
– Aluminum bronze bearing reduces wear caused by off-center loads
– Solid steel cylinder body for durability
– Maximum sized springs speed piston return and increase spring life
– Collar threads are standard on all C-Series models, simplifying fixturing applications
– Working Pressure of 10,000 PSI
– Complies with ANSI / ASME B30.1 Safety Standards
– Base mounting holes standard on 5 through 55 ton cylinders and optional on 75 and 100 ton cylinders
– Chrome plated piston rod resists wear and corrosion
– Some models available as Aluminum Lightweight Cylinders.

– Ideal for cable pulling and tensioning applications
– Cylinder body, piston and gland nut “Power-Tech” treated for corrosion and abrasion resistance
– Most models feature threaded collar, excludes the RH203 and RHA306 models
– Aluminum cylinder body and piston are featured on the RHA306 cylinder
– Working Pressure of 10,000 PSI
– Complies with ANSI / ASME B30.1 Safety Standards
– Plated piston rod resists wear and superior packings provide high cycle life without leakage
– RH Double Acting Built-in safety feature prevents over-pressurization
– Aluminum cylinder body and piston are featured on the RHA604D cylinder

– Lightweight and easy to transport
– Approximately half the weight of comparable steel counterparts
– Hard coated aluminum piston rod and cylinder bore resist wear and corrosion
– Aluminum body resists sparking in explosive environments
– Working Pressure of 10,000 PSI
– Complies with ANSI / ASME B30.1 Safety Standards
– RA_L Locking Collar Supports lifted load for extended periods f time with hydraulic pressure released
– RA_L Load Return
– Wide Range of Steel General Purpose Cylinders
– Wide Range of Steel Locking Collar Available

– Supports lifted load for extended periods of time with hydraulic pressure released
– Visible indicator band alerts when stroke limit is reached. Overflow port (“weep hole”) stroke limiter prevents piston from being overextended
– All cylinders feature coated pistons to resist corrosion and abrasion
– Working Pressure of 10,000 PSI
– Complies with ANSI / ASME B30.1 Safety Standards
– RGP and ZCL Include Patented 5 degree deep swivel cap concentrates loads to minimize offset conditions
– RGP Compact design is ideal for confined areas
– Load Return
– Aluminum Lightweight Options Available

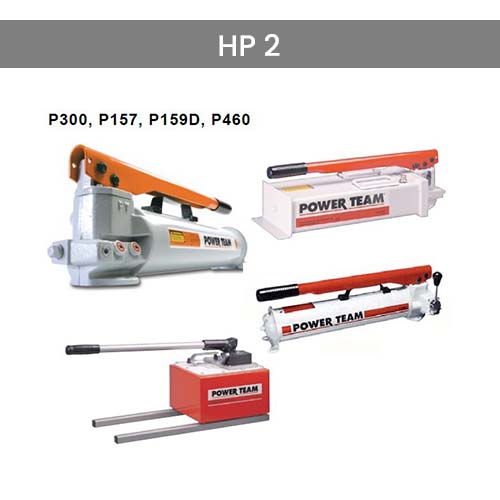

The P series manual two-speed pumps are used with singleacting cylinders. The two-speed feature provides high oil volume for fast cylinder piston approach to the work, then the pump automatically shifts to the high pressure stage. This reduces the number of pump handle strokes required.
PE55 and PED25 Series – Equipped with a 1-1/8 hp, single-phase universal motor, have a 90-95 dBA noise level. Offer the best weight to performance ratio of any Power Team electric/hydraulic pump. CSA rated for intermittent duty. The PED25 versions are “dual flow” pumps which deliver the same low and high pressures to both valves, and have a noise level of 80-85 dBA. They have a 1-1/2 hp induction motor.

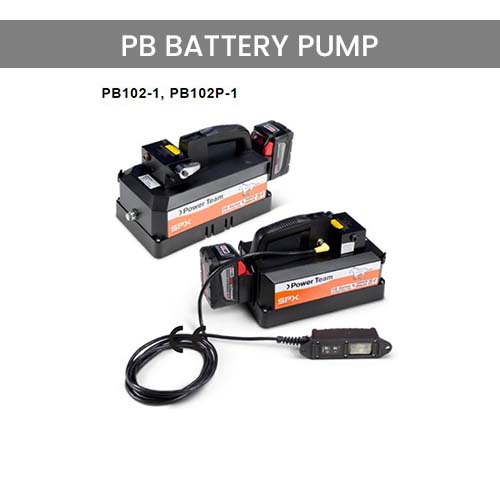

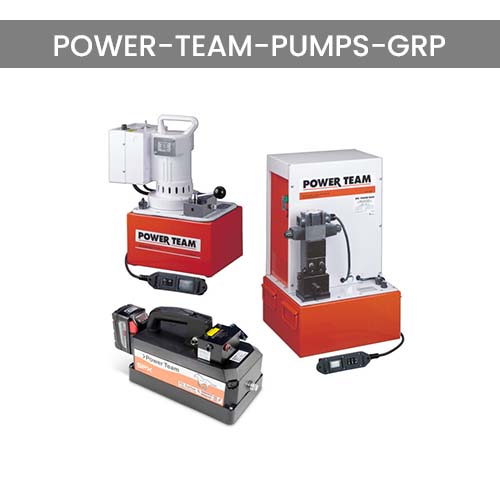

PB102 Series of portable pumps powered by Milwaukee M18 batteries: Quiet, smooth-running, serviceable brushed 18VDC motor, Two-stage, high-pressure hydraulic pump offers quick tool advancement in the first stage, and are Extremely compact, lightweight with an ergonomic handle grip and transport strap to ease portability.

– P Series Aluminum Lightweight Single and Double Acting Hand Pumps
– Steel Single and Double Acting Hand Pumps

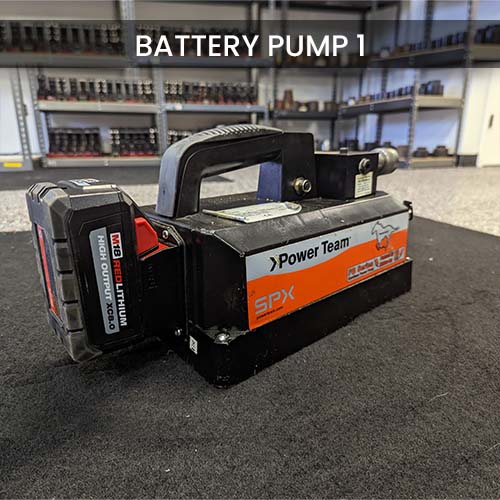

– PB Series Battery Pump Using Milwaukee M18 Batteries

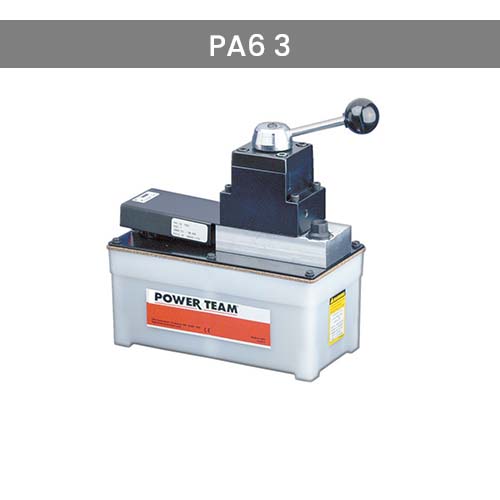

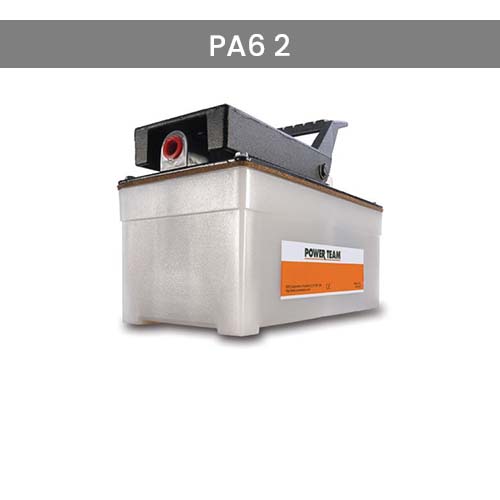

– PA6 Series Pneumatic Foot Pumps
– PE172 Electric Pump for General Purpose Cylinders
– Well Known and Reliable PE55 Pumps for Single and Double Acting Cylinders and Torque Wrench Setups
– Synchronous Lifting MCS-PE554-8 Pumps
– Tensioner Pumps Available in Electric, Air, and Manual on Pa ge 91 of Bolting Catalog

– Single and Double Acting, load return hydraulic cylinders up to 1650 TONS
– Floating piston design resists side loading conditions
– RGG and RDG “Power-Tech” nitro-carburization surface treatment inhibits corrosion and provides exceptional durability
– Maximum sized springs speed piston return and increase spring life
– Safety relief valves to prevent over-pressurization
– Working Pressure of 10,000 PSI
– Complies with ANSI / ASME B30.1 Safety Standards
– RD Aluminum bronze overlay bearings provide long life
– RD Rod and collar threads are designed to withstand full tonnage
– R Series Visible indicator band alerts when stroke limit is reached. Overflow port (weep hole) stroke limiter prevents piston from being overextended
– R Series Plated piston rod increases corrosion resistance and gives superior bearing support

The TWHC series square drive torque wrench is designed for high cycle quality and lower cost of ownership. Intently constructed for a cycle life two to three times longer than existing technology.
The TWLC series wrench is a lightweight, low profile tool featuring low height and a tight nose radius. The TWLC series wrench was designed for the most inaccessible bolting areas found in industry.

– Increased reliability: simple drive assembly means less downtime
– Corrosion resistant material used for use in harsh environments
– Compact nose radius
– Working Pressure of 10,000 PSI
– Multi-direction high flow swivel manifold
– Swivel manifold internal relief valve prevents retract side over-pressurization
– Fine tooth pawl effectively prevents tool “lock-on”
– TWLC Powerthon™️️️️️️️️️️️️️️️️️️ Lifetime Warranty

SRT Spring Return design dramatically increases productivity and safety on the job site when compared to older technology manual return tensioners.
MRT manual return economy range of bolt tensioners offer low-cost tensioning solutions. Incorporating our unique quick-release bridge adaptation, a range of adapter kits provide maximum flexibility.
Our tensioners have quality designed in with standard features that enhance durability and efficiency to get the job done faster and safer
WSS and WSL wind tensioners compatible with ISO Metric threaded and all-thread bars

– Piston overstroke prevention
– Corrosion resistant material used for use in harsh environments
– SRT and MRT are inter-compatible
– Working Pressures of 19,850 – 21,750 PSI
– Electric, Pneumatic, and Manual Pumps Available
– SRT and MRT Designed to fit BS1560/ANSI B16.5/API flanges
– WDD and WSD Achieve 90% proof load requirement for ISO 898 Grade 10.9 bolts
– WDD and WSD Self-energizing, long life seals
– Wind tensioners have tool lifting-strap as standard
– Wind tensioners available with Geared or Manual Nut Rotator
– Hydraulic Nut Leave-On Tensioners Available on Bolting and Tensioning Catalog Page 57

– PT Power Team Posi-Lock®️️️️️️️ pullers make pulling bearings a one-person operation. The T-handle and “Safety Cage®️️️️️️️” control the jaws at all times
– Hydraulic pullers come with a lift plate for ease of transport and lifting. In addition, ram points of different sizes are available for a variety of applications
– PTPH Pullers up to 200 TONS
– ENS Nut-Splitters feature a triple edge replaceable cutting blade
– ENS Size range from M20 to M90 (3/4″ to 3-1/2″) bolt diameters
– Nut-splitters available in single or double acting
– Subsea Nut-Splitters available in the ENS series
– Built-in safety relief valve to protect tool & operator
– Products use a standard 10,000 PSI pump
– Double acting (subsea) version comes standard with 700 bar, 1/4″ NPT, Push to Connect (PTC) couplers. To use with top side pumps, change out couplers to 700 bar, 1/4″ NPT, Screw-to-connect style

SPX Power Team carries a very large selection of tools – more than we have listed here, including but not limited to:

– Product Dimensions
– Spreaders
– Manual Pullers
– Hydraulic Nuts
– Inflatable Jacks
– Toe Jacks
– Bottle Jacks
– Gauges, Hoses, Fittings, Manifolds, and Other Accessories
– Press Units
– Reaction Arms
and More! Check out the below catalog PDFs or call for more:
